Metadata Class Reference

Holds data relating to a single partition. More...

#include <metadata.h>

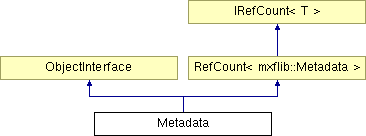

Inheritance diagram for Metadata:

List of all members.

Public Member Functions
	Metadata ()
	Construct a basic Metadata object with current timestamp.
	Metadata (std::string TimeStamp)
	Construct a basic Metadata object with specified timestamp.
void	Init (void)
	Common part of constructor.
void	SetTime (void)
void	SetTime (std::string TimeStamp)
void	AddDMScheme (ULPtr Scheme)
	Add a DMScheme to the listed schemes.
void	AddEssenceType (ULPtr ECType)
	Add an essence type UL to the listed essence types.
void	AddEssenceType (const UL &ECType)
	Add an essence type UL to the listed essence types.
void	SetOP (const UL &OP)
	Set the operational pattern property of the preface.
void	SetOP (ULPtr OP)
	Set the operational pattern property of the preface.
PackagePtr	AddMaterialPackage (UMIDPtr PackageUMID)
PackagePtr	AddMaterialPackage (std::string PackageName="", UMIDPtr PackageUMID=NULL)
PackagePtr	AddFilePackage (UInt32 BodySID, UMIDPtr PackageUMID)
PackagePtr	AddFilePackage (UInt32 BodySID, std::string PackageName="", UMIDPtr PackageUMID=NULL)
PackagePtr	AddSourcePackage (UInt32 BodySID, UMIDPtr PackageUMID)
PackagePtr	AddSourcePackage (UInt32 BodySID, std::string PackageName="", UMIDPtr PackageUMID=NULL)
bool	AddEssenceContainerData (UMIDPtr TheUMID, UInt32 BodySID, UInt32 IndexSID=0)
	Add an entry into the essence container data set for a given essence stream.
void	SetPrimaryPackage (PackagePtr Package)
	Set the primary package property of the preface.
void	SetPrimaryPackage (MDObjectPtr Package)
	Set the primary package property of the preface.
PackagePtr	GetPrimaryPackage (void)
	Get a pointer to the primary package.
bool	UpdateGenerations (MDObjectPtr Ident, std::string UpdateTime="")
	Update the Generation UID of all modified sets and add the specified Ident set.
Static Public Member Functions
static MetadataPtr	GetMetadata (MDObjectPtr Object)
	Return the containing "Metadata" object for this MDObject.
static MetadataPtr	Parse (MDObjectPtr BaseObject)
	Parse an existing MDObject into a Metadata object.
Public Attributes
PackageList	Packages
	Each package in this metadata.
Protected Member Functions
	Metadata (MDObjectPtr BaseObject)
	Protected constructor used to create from an existing MDObject.
Protected Attributes
std::string	ModificationTime
	Creation or modification time for this metadata, used for package times.
Private Member Functions
PackagePtr	AddPackage (const UL &PackageType, std::string PackageName, UMIDPtr PackageUMID, UInt32 BidySID=0)
	Add a package of the specified type to the matadata.
bool	UpdateGenerations_Internal (MDObjectPtr Obj, UUIDPtr ThisGeneration)
	Update the Generation UID of a set if modified - then iterate through strongly linked sets.
void	ClearModified_Internal (MDObjectPtr Obj)
	Clear all modified flags for this set and strongly linked sets - used when adding initial Identification set.

---

Detailed Description

Holds data relating to a single partition.

---

Constructor & Destructor Documentation

Metadata

(

MDObjectPtr

BaseObject

)

[inline, protected]

Protected constructor used to create from an existing MDObject.

Metadata

(

)

Construct a basic Metadata object with current timestamp.

Metadata

(

std::string

TimeStamp

)

Construct a basic Metadata object with specified timestamp.

---

Member Function Documentation

void Init

(

void

)

Common part of constructor.

void SetTime

(

void

)

[inline]

void SetTime

(

std::string

TimeStamp

)

[inline]

void AddDMScheme

(

ULPtr

Scheme

)

[inline]

Add a DMScheme to the listed schemes.

void AddEssenceType

(

ULPtr

ECType

)

[inline]

Add an essence type UL to the listed essence types.

Only added if it does not already appear in the list

void AddEssenceType

(

const UL &

ECType

)

[inline]

Add an essence type UL to the listed essence types.

Only added if it does not already appear in the list

void SetOP

(

const UL &

OP

)

[inline]

Set the operational pattern property of the preface.

void SetOP

(

ULPtr

OP

)

[inline]

Set the operational pattern property of the preface.

PackagePtr AddMaterialPackage

(

UMIDPtr

PackageUMID

)

[inline]

PackagePtr AddMaterialPackage	(	std::string	PackageName = "",
		UMIDPtr	PackageUMID = NULL
	)			[inline]

PackagePtr AddFilePackage	(	UInt32	BodySID,
		UMIDPtr	PackageUMID
	)			[inline]

PackagePtr AddFilePackage	(	UInt32	BodySID,
		std::string	PackageName = "",
		UMIDPtr	PackageUMID = NULL
	)			[inline]

PackagePtr AddSourcePackage	(	UInt32	BodySID,
		UMIDPtr	PackageUMID
	)			[inline]

PackagePtr AddSourcePackage	(	UInt32	BodySID,
		std::string	PackageName = "",
		UMIDPtr	PackageUMID = NULL
	)			[inline]

bool AddEssenceContainerData	(	UMIDPtr	TheUMID,
		UInt32	BodySID,
		UInt32	IndexSID = 0
	)

Add an entry into the essence container data set for a given essence stream.

void SetPrimaryPackage

(

PackagePtr

Package

)

[inline]

Set the primary package property of the preface.

void SetPrimaryPackage

(

MDObjectPtr

Package

)

[inline]

Set the primary package property of the preface.

PackagePtr GetPrimaryPackage

(

void

)

Get a pointer to the primary package.

bool UpdateGenerations	(	MDObjectPtr	Ident,
		std::string	UpdateTime = ""
	)

Update the Generation UID of all modified sets and add the specified Ident set.

Returns:

true if one or more sets updated, false if none updated (and hence Ident not added)

Note:

The preface does not get modified simply to add the new identification set

The identification set added to the file is a copy of Ident

If the identification set has no ModificationDate property it is set to UpdateTime (if specified) else the packages ModificationTime

MetadataPtr GetMetadata

(

MDObjectPtr

Object

)

[static]

Return the containing "Metadata" object for this MDObject.

Returns:

NULL if MDObject is not contained in a Metadata object

MetadataPtr Parse

(

MDObjectPtr

BaseObject

)

[static]

Parse an existing MDObject into a Metadata object.

PackagePtr AddPackage	(	const UL &	PackageType,
		std::string	PackageName,
		UMIDPtr	PackageUMID,
		UInt32	BidySID = 0
	)			[private]

Add a package of the specified type to the matadata.

bool UpdateGenerations_Internal	(	MDObjectPtr	Obj,
		UUIDPtr	ThisGeneration
	)			[private]

Update the Generation UID of a set if modified - then iterate through strongly linked sets.

Returns:

true if any of the sets have been modified, else false

Note:

true is returned even if a set has been modified but doesn't support GenerationUID this will force an Identification set to be added to show something was updated

void ClearModified_Internal

(

MDObjectPtr

Obj

)

[private]

Clear all modified flags for this set and strongly linked sets - used when adding initial Identification set.

---

Member Data Documentation

PackageList Packages

Each package in this metadata.

std::string ModificationTime [protected]

Creation or modification time for this metadata, used for package times.

---

The documentation for this class was generated from the following files:

• metadata.h
• metadata.cpp

---
